Pair of Mc4 Connectors for Solar Panel
Pair of Mc4 Connectors for Solar Panel
SKU:shp mC
Regular price
5,00€
Regular price
Sale price
5,00€
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Free delivery from 100€
Secure payment in 4 installments without fees
Possibility of installation in our workshop

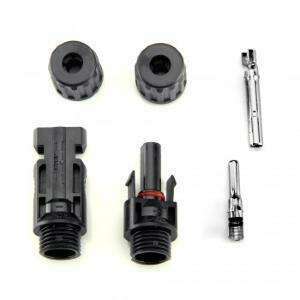

pair of MC4 male and female connectors
in order to connect the solar panels to make them removable.
easy disassembly and replacement of your panels.
plan 2 batches and reverse them when installing.
rainproof
Size of a pair : 1.7 x 1.7 x 8.5 cm
Nominal current : 30A
Nominal voltage : 1000V DC
Test voltage : 6000 V (50 Hz , 1 min )
Surge type / Pollution index : CATIII / 2
Connector contact resistance : 0.5mΩ
Conductive material of connector: copper
Insulating material of connector: PPO
Protection index : IP2 * / IP67
Flammability class : UL94-V0
in order to connect the solar panels to make them removable.
easy disassembly and replacement of your panels.
plan 2 batches and reverse them when installing.
rainproof
Description: Pair of MC4 connectors for solar panel
Size of a pair : 1.7 x 1.7 x 8.5 cm
Nominal current : 30A
Nominal voltage : 1000V DC
Test voltage : 6000 V (50 Hz , 1 min )
Surge type / Pollution index : CATIII / 2
Connector contact resistance : 0.5mΩ
Conductive material of connector: copper
Insulating material of connector: PPO
Protection index : IP2 * / IP67
Flammability class : UL94-V0
