Campko 36l Steel Tank Bottle Kit

KIT ONE CAMPKO LPG BOTTLE rechargeable 36 liters with multivalve at 80%

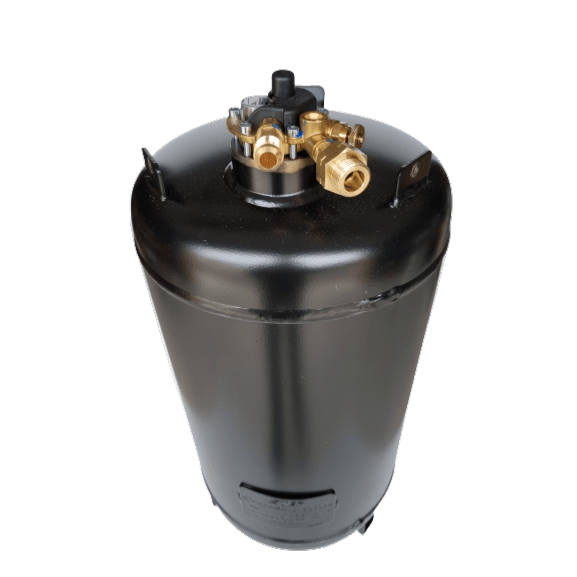

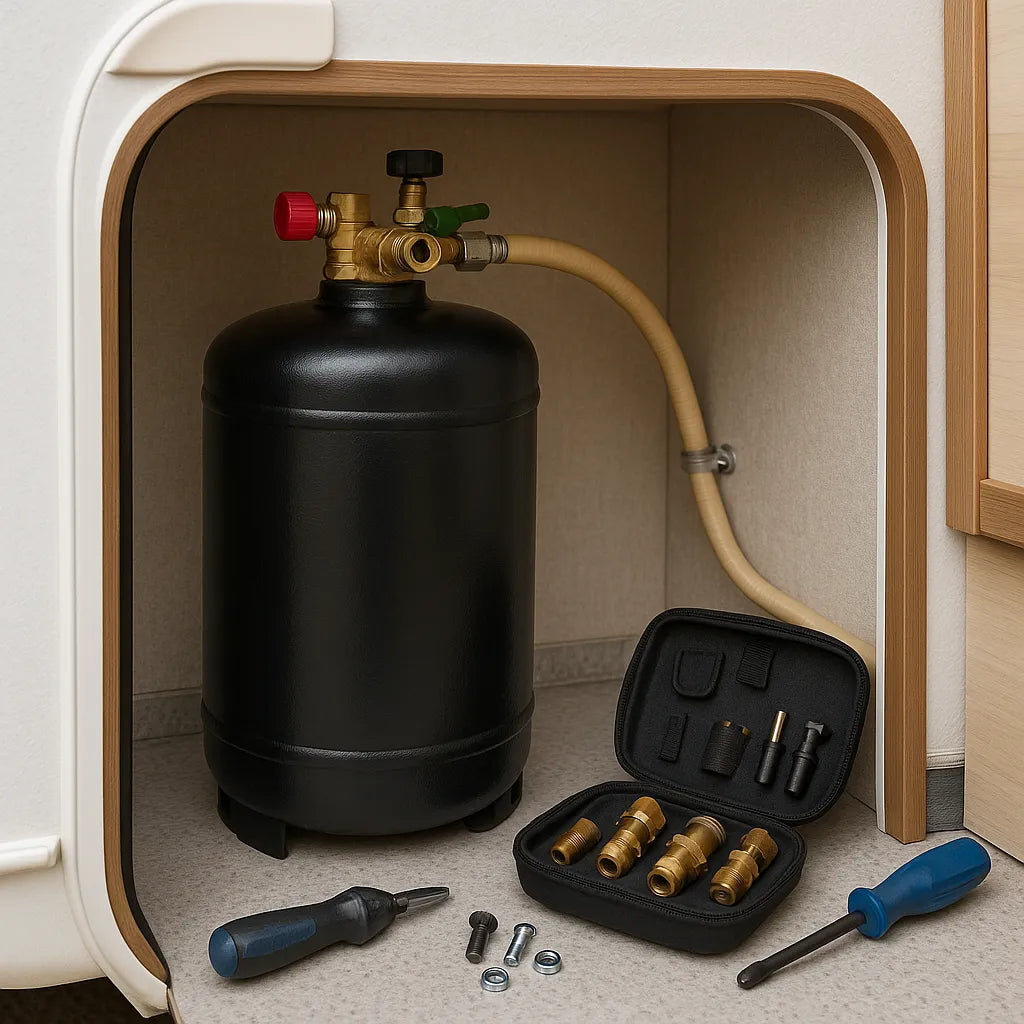

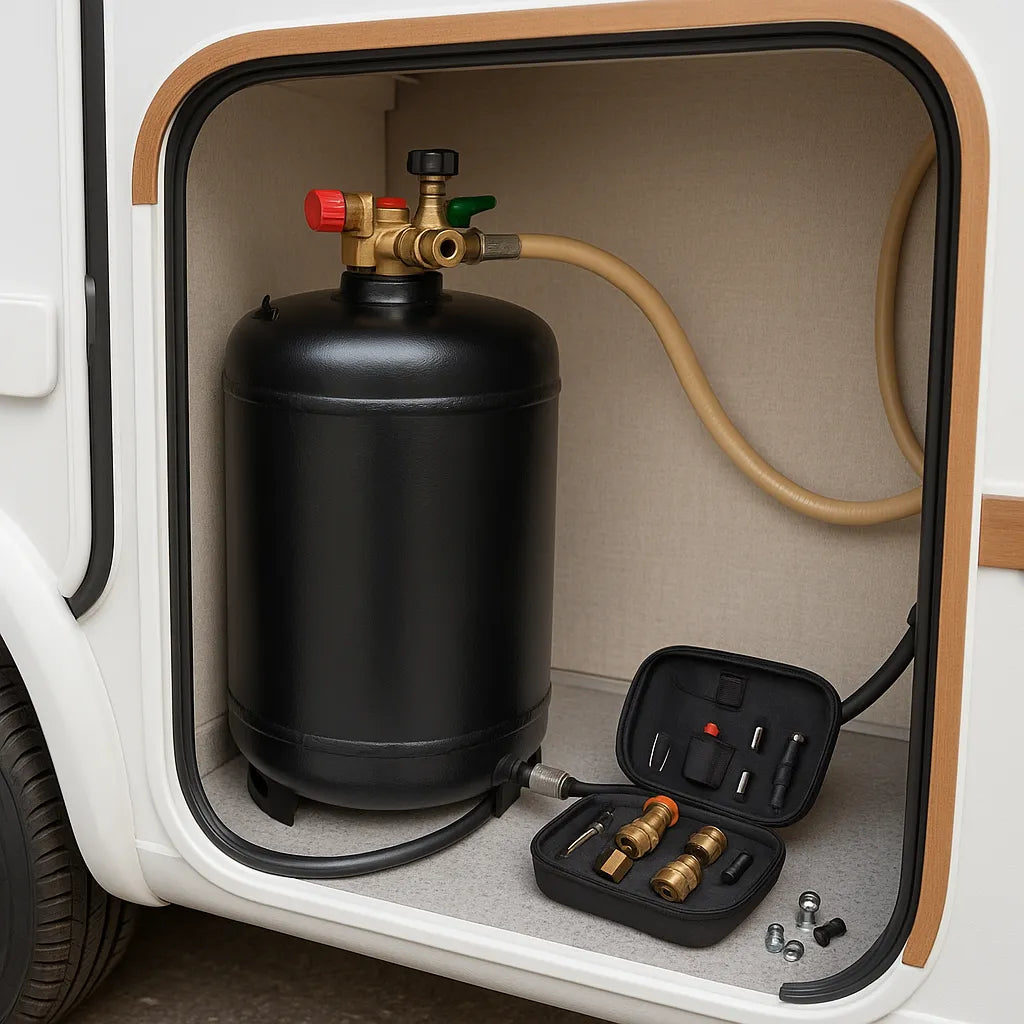

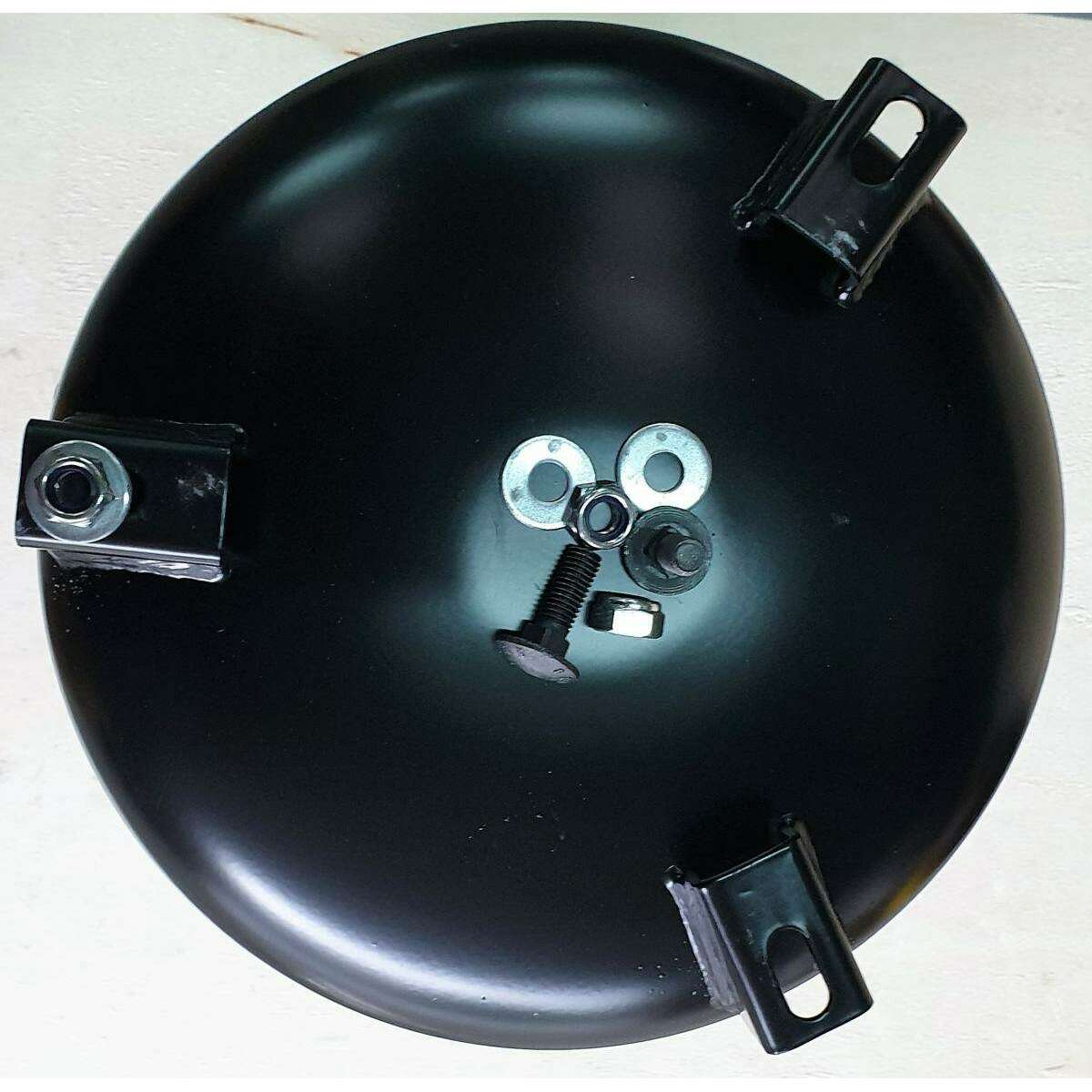

The 36l tank bottle approved 67R-01 is filled using an integrated multi-valve and an automatic filling stop at 80%. A fixed installation in a caravan or motorhome is possible thanks to a fixing using 3 ground brackets with its 3 10mm bolts.

KIT ONE CAMPKO LPG BOTTLE rechargeable 36 liters with multivalve at 80%

The 36l tank bottle approved 67R-01 is filled using an integrated multi-valve and an automatic filling stop at 80%. A fixed installation in a caravan or motorhome is possible thanks to a fixing using 3 ground brackets with its 3 10mm bolts.
steel content of a Volume (gross): 36 liters
Volume 80% (net): 28 liters or 14 kg of LPG
height (without collar) 665 mm
Diameter 300 mm
Empty weight 15.5 Kg
Approval: ECE 67 R01
80% filling stop included
Safety valve 27 bar pressure relief valve

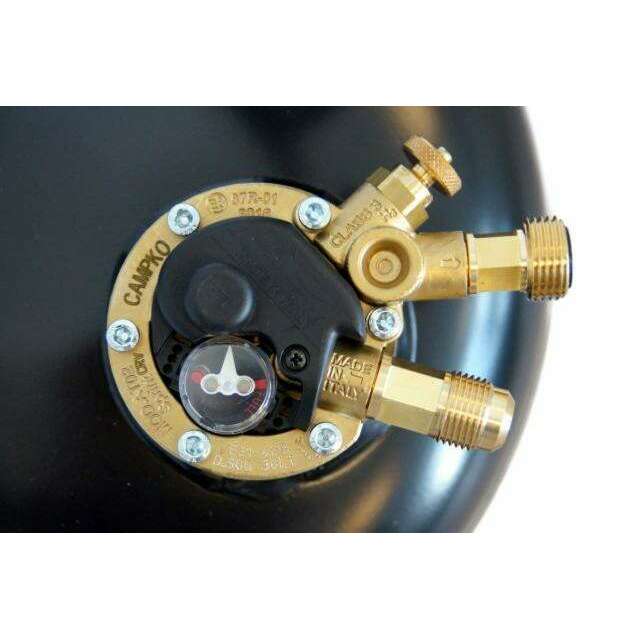

Level indicator included

1/2" external thread inlet
FRANCE STANDARD output = W21.8 x 1/14 LH

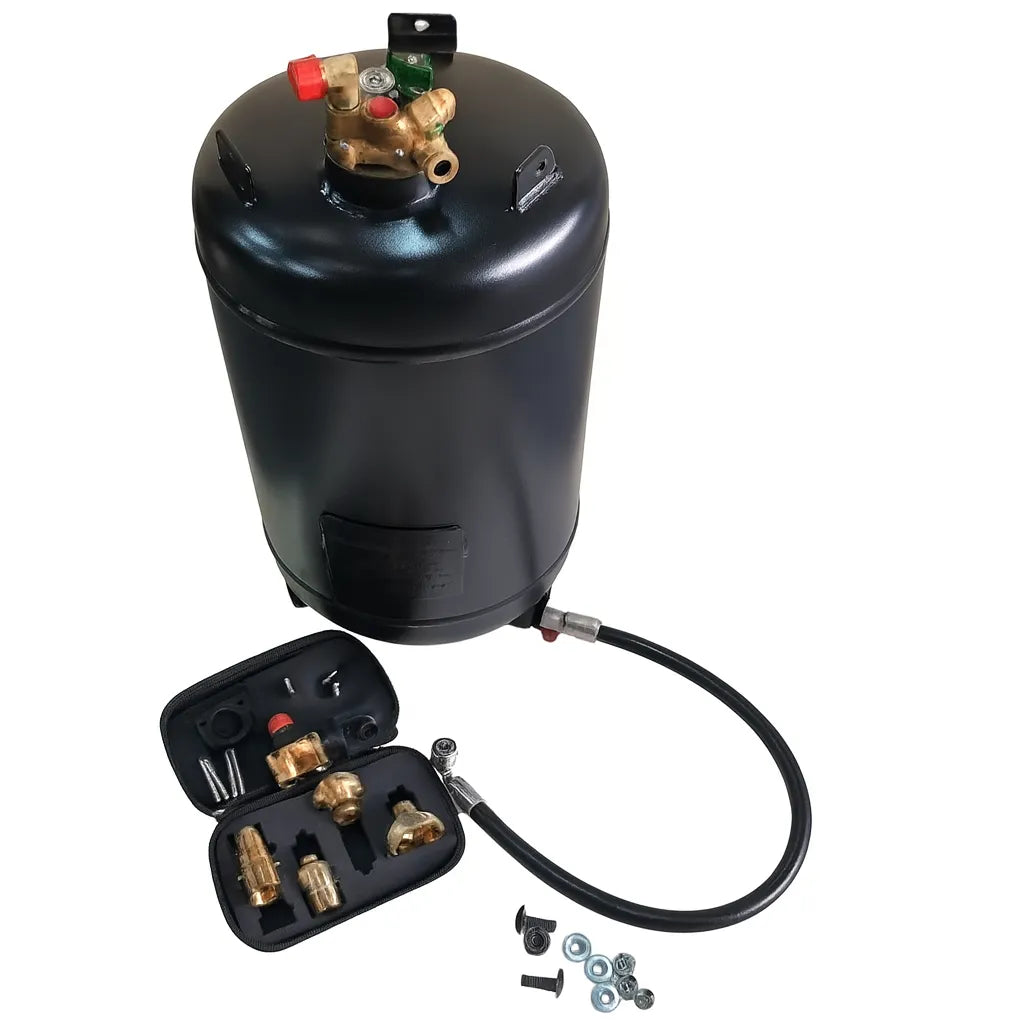

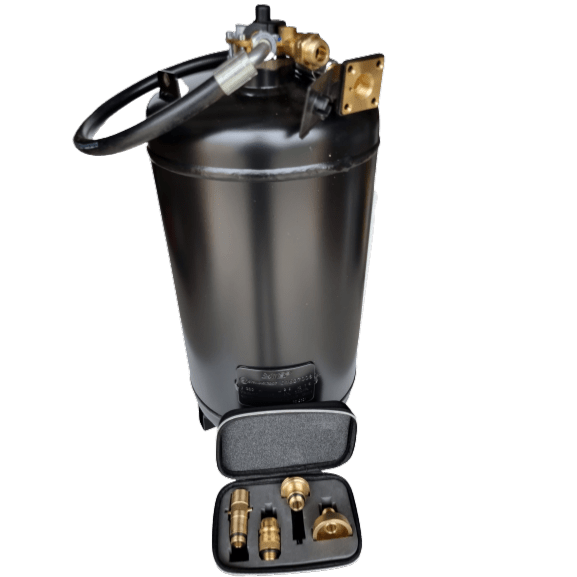

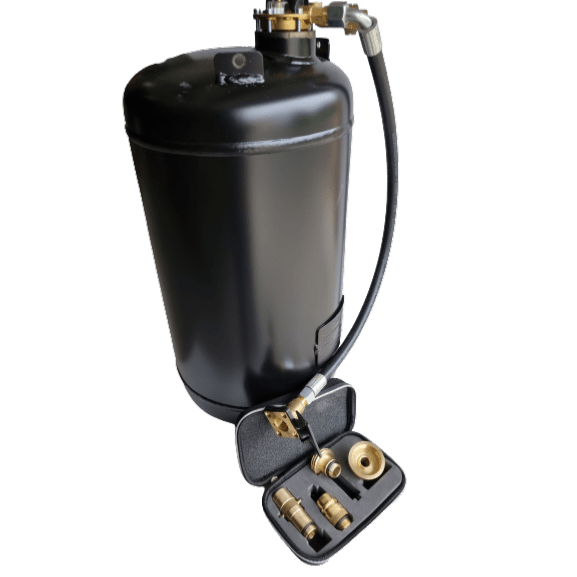

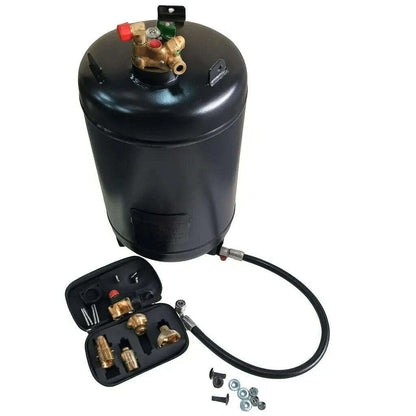

THE KIT INCLUDES:
⦁ THE 36L BOTTLE
⦁ THE FILLING PORT TO BE INSTALLED ON THE BODYWORK with short screws and long screws
⦁ THE 75 CM FILLING PIPE Bent at one end (other length 50cm and 100cm on request)
⦁ the 4 FILLING TIPS FOR ALL EUROPEAN COUNTRIES

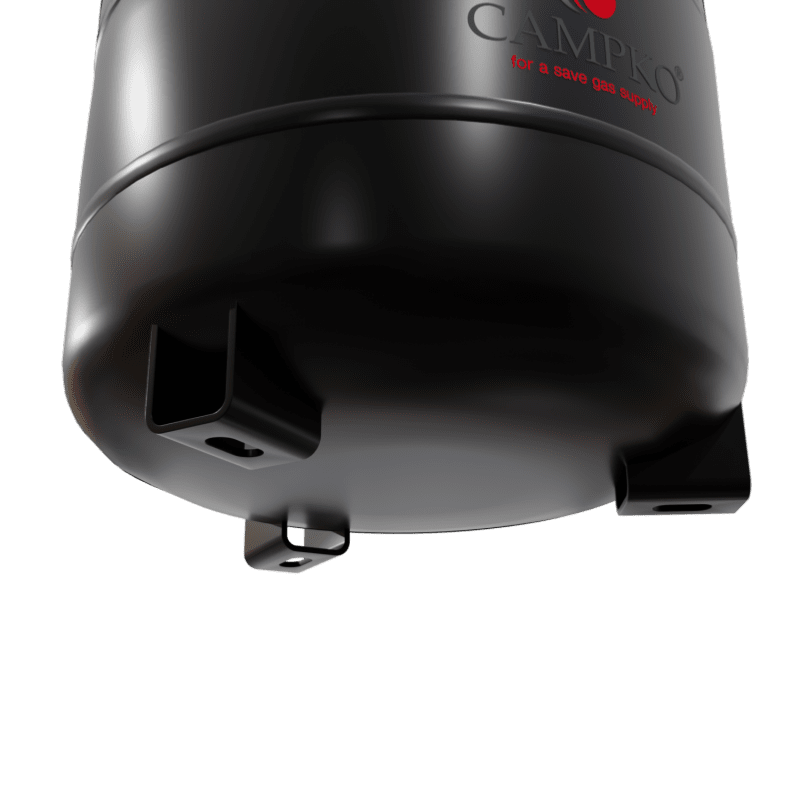

⦁ THE 3 FIXING SCREWS TO THE FLOORS
